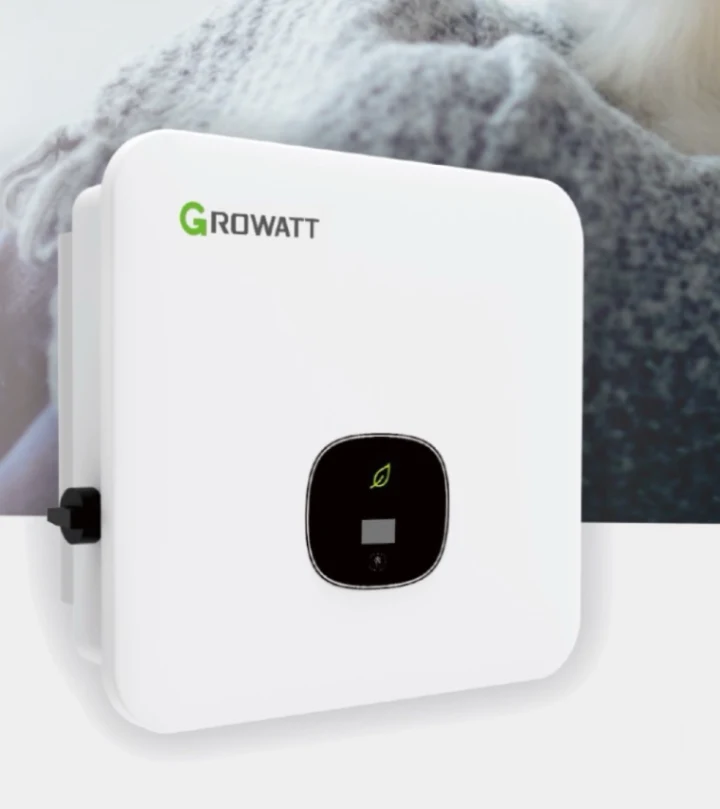

Growatt MOD 7~15KTL3-X2 (Pro) Three Phase Inverter
Model MOD 7KTL3-X2 / 8KTL3-X2 / 10KTL3-X2 / 12KTL3-X2 / 15KTL3-X2 (Pro)
Growatt MOD X2 (Pro) three phase string inverters from 7 kW to 15 kW AC, with two MPP trackers, 1100 V maximum DC voltage and a maximum efficiency of 98.6%. The range carries Type II surge protection on both DC and AC sides, string fault monitoring, an OLED display with touch button, IP66 protection and an 8 or 10 year warranty.
Supplied and installed by Solar Works Pakistan across Punjab. For current pricing and availability, WhatsApp +92 336 6664321.
Key features
- Max. efficiency 98.6%
- OLED and touch button
- Type II SPD on DC and AC side
- String monitoring
- AFCI optional
Input data (DC)
| Max. recommended PV power (module STC) | 7K: 10500 W · 8K: 12000 W · 10K: 15000 W · 12K: 18000 W · 15K: 22500 W |
|---|---|
| Max. DC voltage | 1100 V |
| Start voltage | 160 V |
| Nominal voltage | 600 V |
| MPPT voltage range | 140 V - 1000 V |
| No. of MPP trackers | 2 |
| No. of PV strings per MPP tracker | 1 |
| Max. input current per MPP tracker | 20 A |
| Max. short-circuit current per MPP tracker | 25 A |
Output data (AC)
| AC nominal power | 7000 / 8000 / 10000 / 12000 / 15000 W |
|---|---|
| Max. AC apparent power | 7700 / 8800 / 11000 / 13200 / 16500 VA |
| Nominal AC voltage (range) | 220 V/380 V, 230 V/400 V (340-440 V) |
| AC grid frequency (range) | 50/60 Hz (45-55 Hz / 55-65 Hz) |
| Max. output current | 11.7 / 13.3 / 16 / 20 / 25 A |
| Adjustable power factor | 0.8 leading ... 0.8 lagging |
| THDi | < 3% |
| AC grid connection type | 3W+N+PE |
Efficiency
| Max. efficiency | 98.6% |
|---|---|
| European efficiency | 7K / 8K: 98.1% · 10K / 12K / 15K: 98.2% |
| MPPT efficiency | 99.9% |
Protection devices
| DC reverse polarity protection | Yes |
|---|---|
| DC switch | Optional |
| AC/DC surge protection | Type II / Type II |
| Insulation resistance monitoring | Yes |
| AC short-circuit protection | Yes |
| Ground fault monitoring | Yes |
| Grid monitoring | Yes |
| Anti-islanding protection | Yes |
| Residual-current monitoring unit | Yes |
| String fault monitoring | Yes |
| AFCI protection | Optional |
General data
| Dimensions (W / H / D) | 425 / 387 / 178 mm |
|---|---|
| Weight | 7K / 8K / 10K: 14.6 kg · 12K / 15K: 15.6 kg |
| Operating temperature range | -25 °C ... +60 °C |
| Nighttime power consumption | < 1 W |
| Topology | Transformerless |
| Cooling | Natural convection |
| Protection degree | IP66 |
| Relative humidity | 0 ~ 100% |
| Altitude | 4000 m |
| DC connection | H4 / MC4 (optional) |
| AC connection | Connector |
| Display | OLED + LED + WIFI + APP |
| Interfaces: USB / RS485 / WIFI / GPRS / LAN / RF | Yes / Yes / Optional / Optional / Optional / Optional |
| Warranty | 8 years standard / 10 years optional |
Certification
| Certificates | CE, VDE0126, EN50549, IEC62116, IEC61727, CEI0-21, N4105, G98/G99, G100 |
|---|
