Primax · Batteries · LiFePO4

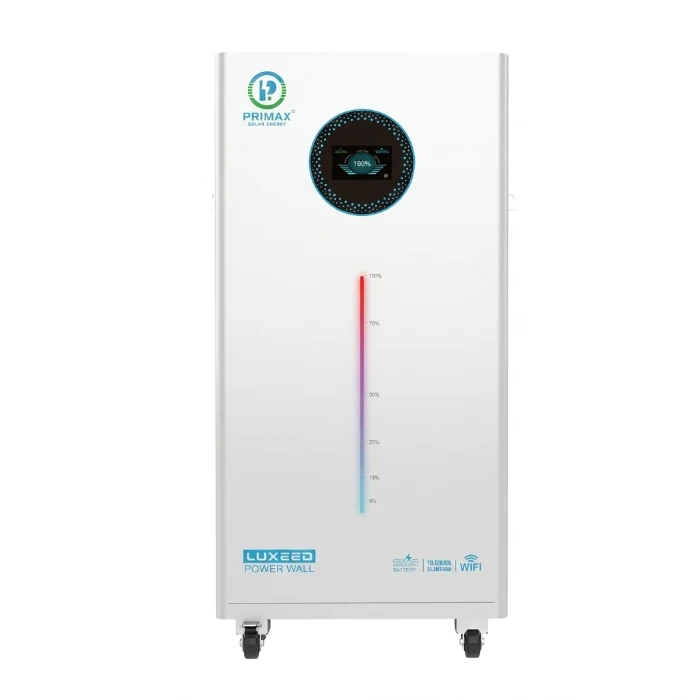

Primax Luxeed Power Wall 16.08 kWh Lithium Battery
Model Luxeed Power Wall
Primax Luxeed Power Wall is a 16.08 kWh lithium iron phosphate battery for residential and industrial solar storage and backup, built on 314 Ah cells at 51.2 V nominal. It supports a 200 A maximum charge and discharge current, a listed cycle life of 10,000 cycles and a 15-year design life, with BMS protection and a 10-year warranty.
Supplied and installed by Solar Works Pakistan across Punjab. For current pricing and availability, WhatsApp +92 336 6664321.
Key features
- Longer lifespan
- Faster charging
- Higher efficiency
- More usable backup
- Maintenance-free operation
- Better solar compatibility
Technical specifications
| Nominal energy | 16.08 kWh |
|---|---|
| Nominal voltage / capacity | 51.2 V / 314 Ah |
| Battery chemistry | LFP / LiFePO4 |
| Maximum charge / discharge current | 200 A |
| Standard charge voltage | 56.8 V |
| Parallel operation | Max. 16, 33 or 64 (optional), as listed |
| Protection rating | IP21 |
| Design life | 15 years |
| Cycle life | 10,000 cycles |
| Warranty | 10 years |
| Battery management | BMS protection |
