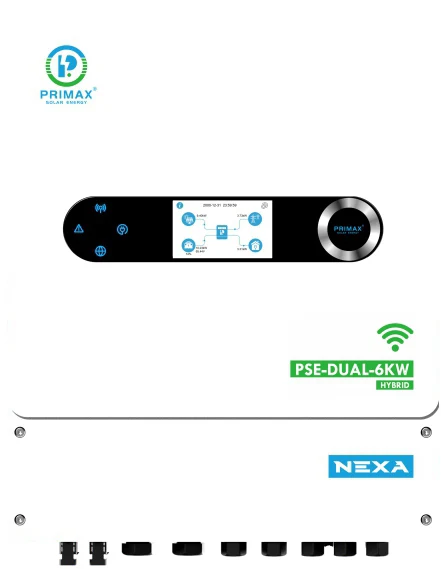

Primax NEXA PSE-DUAL-6KW Single Phase Hybrid Inverter
Model PSE-DUAL-6KW (NEXA)
Primax NEXA PSE-DUAL-6KW is a 6 kW single phase hybrid inverter with two MPP trackers, 9000 W maximum PV input and dual backup outputs each rated the full 6 kW. Maximum PV efficiency is 97.6% with a 120 A battery charge and discharge current, CAN and RS485 BMS communication, and RS485, CAN, Wi-Fi, Ethernet and 4G monitoring options.
Supplied and installed by Solar Works Pakistan across Punjab. For current pricing and availability, WhatsApp +92 336 6664321.
Key features
- Two MPP trackers, 9000 W maximum DC input
- Two backup outputs, each rated 6000 W
- Max. PV efficiency 97.6%, European efficiency 97%
- Lithium or lead acid battery support, 120 A charge and discharge
- Communication: RS485, CAN, Wi-Fi, Ethernet, 4G
- Low noise operation, below 25 dB
- 10 year design life
PV input
| Max. DC input power | 9000 W |
|---|---|
| Max. DC input voltage | 500 V |
| MPPT voltage range | 150 - 450 V |
| Starting voltage | 125 V |
| Max. input current | 18 / 18 A |
| Max. short circuit current | 22.5 / 22.5 A |
| Number of MPP trackers | 2 |
AC output (grid)
| Rated output power | 6000 W |
|---|---|
| Max. output apparent power | 6600 VA |
| Rated output voltage | 220 / 230 / 240 V |
| Rated output frequency | 50 / 60 Hz |
| Max. output current | 27 A |
| THDi | < 3% |
| Output power factor | ~1 (-0.8 leading ~ +0.8 lagging) |
AC output (two backup)
| Full max. output power | 6000 W |
|---|---|
| Backup 1 max. output power | 6000 W |
| Backup 2 max. output power | 6000 W |
| Rated output voltage | 220 / 230 V |
| Rated output frequency | 50 / 60 Hz (±0.2%) |
| Max. output current | 27 A |
| Output power factor (off grid) | ~1 (0.8 leading to 0.8 lagging) |
| Output current harmonic distortion | THD < 3% (nonlinear load); THD < 1.5% (linear load) |
Battery parameters
| Battery type | Lithium or lead acid battery |
|---|---|
| Rated battery voltage | 48 V |
| Voltage range | 44 - 57 V |
| Max. charge / discharge current | 120 A |
| BMS communication | CAN / RS485 |
Efficiency
| Max. efficiency (PV) | 97.6% |
|---|---|
| Max. efficiency (cell) | 94.5% |
| European efficiency | 97% |
Protection
| PV input reverse polarity protection | Yes |
|---|---|
| PV insulation resistance detection | Yes |
| Residual current detection | Yes |
| Output over current protection | Yes |
| Output short circuit protection | Yes |
| Output over voltage protection | Yes |
General data
| Operating temperature range | -25 ~ 60 °C |
|---|---|
| Storage temperature range | -30 ~ 65 °C |
| Humidity range | 0 - 95% |
| Operating altitude | ≤ 4000 m |
| Communication | RS485 / CAN / WiFi / Ethernet / 4G |
| Noise | < 25 dB |
| Size (W × H × D) | 427 × 554 × 198 mm |
| Weight | 19 kg |
Standards
| Standards | EN 62109-1/2, IEC 62109-1/2, EMC 61000, EN 50549, VDE 4105/0124, NRS 097-2-1, IEC 61727 / 62116 / 61683 |
|---|
