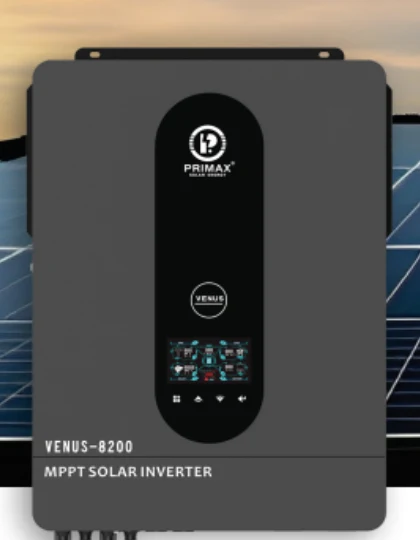

Primax Venus 8200 Off-Grid MPPT Solar Inverter
Model VENUS-8200
Primax Venus 8200 is an 8200 W / 8200 VA single phase pure sine wave MPPT solar inverter on a 48 VDC battery bus, taking dual PV input of 5600 W + 5600 W across a 90-450 VDC MPPT window. Solar charging reaches 160 A, maximum conversion efficiency is 98%, and dual output separates a full-power main load from a 2733 W secondary load in battery mode. It runs with or without a battery and carries a touch button, RGB lights, built-in lithium activation, an anti-dust kit and WIFI/GPRS monitoring.
Supplied and installed by Solar Works Pakistan across Punjab. For current pricing and availability, WhatsApp +92 336 6664321.
Key features
- Pure sine wave solar inverter (on/off grid)
- Output power factor 1.0
- WIFI and GPRS available for iOS and Android (optional)
- Inverter can run without battery
- One-key restoration to factory settings
- Built-in lithium battery automatic activation
- Built-in 160 A MPPT solar charger (for 8.2kw, 10.2kw), 140 A (for 7.2kw)
- High PV input voltage range (90 ~ 450 VDC)
- Built-in anti-dust kit for harsh environments
- Smart battery charge design to optimise battery life
- Dual output and dual PV input
- Touch button and RGB lights
Model
| Phase | 1-phase |
|---|---|
| Maximum PV input power | 5600 W + 5600 W |
| Rated output power | 8200 W / 8200 VA |
| Maximum solar charging current | 160 A |
Grid operation - PV input (DC)
| Nominal DC voltage / maximum DC voltage | 360 / 500 VDC |
|---|---|
| Start-up voltage / initial feeding voltage | 90 VDC / 120 VDC |
| MPPT voltage range | 90 ~ 450 VDC |
| Maximum input current | 2 / 18 A |
Grid operation - grid output (AC)
| Nominal output voltage | 220 / 230 / 240 VAC |
|---|---|
| Output voltage range | 190 ~ 253 VDC |
| Nominal output current | 35.6 A |
| Power factor | > 0.99 |
| Maximum conversion efficiency (DC/AC) | 98% |
Two load output power
| Full load | 8200 W |
|---|---|
| Maximum main load | 8200 W |
| Maximum second load (battery mode) | 2733 W |
| Maximum load cut off voltage | 52 VDC |
| Maximum load return voltage | 54 VDC |
Off-grid operation - AC input
| AC start-up voltage / auto restart voltage | 120-140 VAC / 180 VAC |
|---|---|
| Acceptable input voltage range | 90-280 VAC or 170-280 VAC |
| Frequency range | 49 ~ 51 ±1 Hz |
| Maximum AC input current | 40 A |
Off-grid operation - PV input (DC)
| Nominal DC voltage / maximum DC voltage | 360 / 500 VDC |
|---|---|
| MPPT voltage range | 90 ~ 450 VDC |
| Maximum input current | 2 / 18 A |
Battery mode output (AC)
| Nominal output voltage | 220 / 230 / 240 VAC |
|---|---|
| Output waveform | Pure sine wave |
| Efficiency (DC to AC) | 94% |
Battery and charger
| Nominal DC voltage | 48 VDC |
|---|---|
| Maximum solar charging current | 160 A |
| Maximum AC charging current | 140 A |
| Maximum charging current | 160 A |
Combined operation
| PV nominal DC voltage / maximum DC voltage | 360 / 500 VDC |
|---|---|
| PV start-up voltage / initial feeding voltage | 90 VDC / 120 VDC |
| PV MPPT voltage range | 90 ~ 450 VDC |
| PV maximum input current | 2 / 18 A |
| Grid nominal output voltage | 220 / 230 / 240 VAC |
| Grid output voltage range | 190 ~ 253 VDC |
| Grid nominal output current | 35.6 A |
| AC start-up voltage / auto restart voltage | 120-140 VAC / 180 VAC |
| AC acceptable input voltage range | 90-280 VAC or 170-180 VAC |
| Maximum AC input current | 40 A |
| Maximum AC charging current | 140 A |
General - physical, interface and environment
| Dimension (D × W × H) | 530 × 420 × 160 mm |
|---|---|
| Carton dimension (D × W × H) | 618 × 463 × 205 mm |
| Net weight | 14.6 kg |
| Gross weight | 16.1 kg |
| Communication port | RS232 / RS485 / WIFI / GPRS / lithium battery |
| Humidity | 5% to 95% relative humidity (non-condensing) |
| Operating temperature | -10 °C ~ 50 °C |
| Compliance safety | CE |
