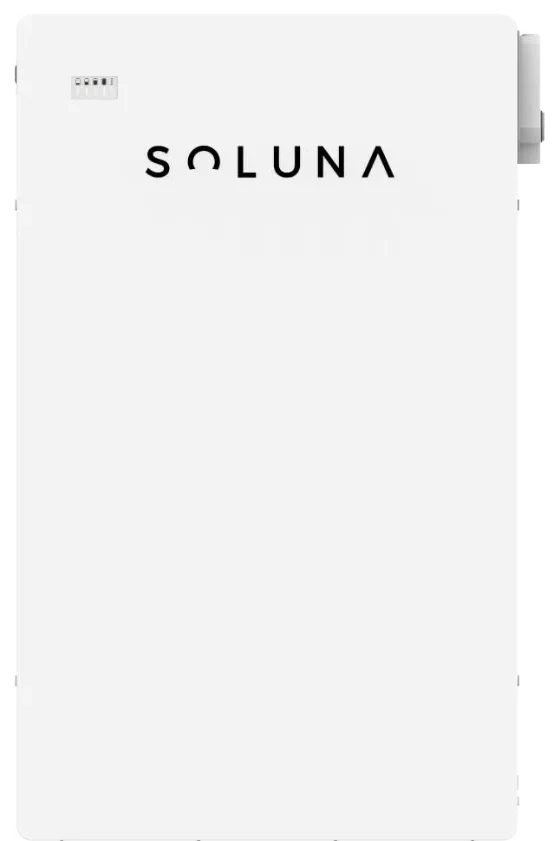

Soluna Jupiter 32K Pack LV Lithium Battery

Model Jupiter 32K Pack LV

The Soluna Jupiter 32K Pack LV is a residential and small-commercial LiFePO4 battery featuring an intelligent BMS with advanced fault protection. With 32 kWh per unit and scalability up to 960 kWh through 30 parallel units, it delivers secure, flexible and high-performance energy storage backed by a 10-year warranty and 8,000-cycle lifespan.

Supplied and installed by Solar Works Pakistan across Punjab. For current pricing and availability, WhatsApp +92 336 6664321.

Soluna Jupiter 32K Pack LV Lithium Battery

Key features

  • Scalable to 960 kWh
  • Safest LiFePO4 battery
  • Long lifespan
  • Easy installation
  • Floor or wall mounted
  • IP65

Electrical characteristics

Battery typeLFP
Total energy capacity32.153 kWh
Usable energy capacity28.937 kWh
Nominal capacity628 Ah
Nominal voltage51.2 V
Voltage range (usable)44.8 to 56.8 V
Charge / discharge current314 A
Charge / discharge power16 kW
Max. charge / discharge current314 A
Max. charge / discharge power16 kW
Recommended depth of discharge80%
Max. depth of discharge90%
Cycle life @ 25 °C (under standard charge and discharge conditions)≥ 8000

Physical characteristics

Dimensions (W × D × H)665 × 220 × 1125 mm
Weight260 kg
InstallationIndoor / outdoor
Ingress protection ratingIP65

BMS

DC disconnectContactor / fuse
CommunicationCAN
Monitoring parametersSystem voltage, system current, cell voltage, cell temperature, SOC, SOH

Operating conditions

Operating temperature-10 to 50 °C
Operating temperature (recommended)15 to 30 °C
Storage temperature (recommended)-20 to 60 °C
Humidity conditions5 to 95%
AltitudeMax. 2,000 m
Cooling strategyNatural convection

Reliability and certification

CertificationIEC 62619, EMC, ROHS
TransportationUN38.3

Warranty

Product and performance10-year warranty
